REGULATOR RECTIFIER ASSTD YAM RFR FITMENTS (RM30922)

RMS30922

Regular price $93.98
/
Tax included. Shipping calculated at checkout.

Title
Only 2 items in stock!

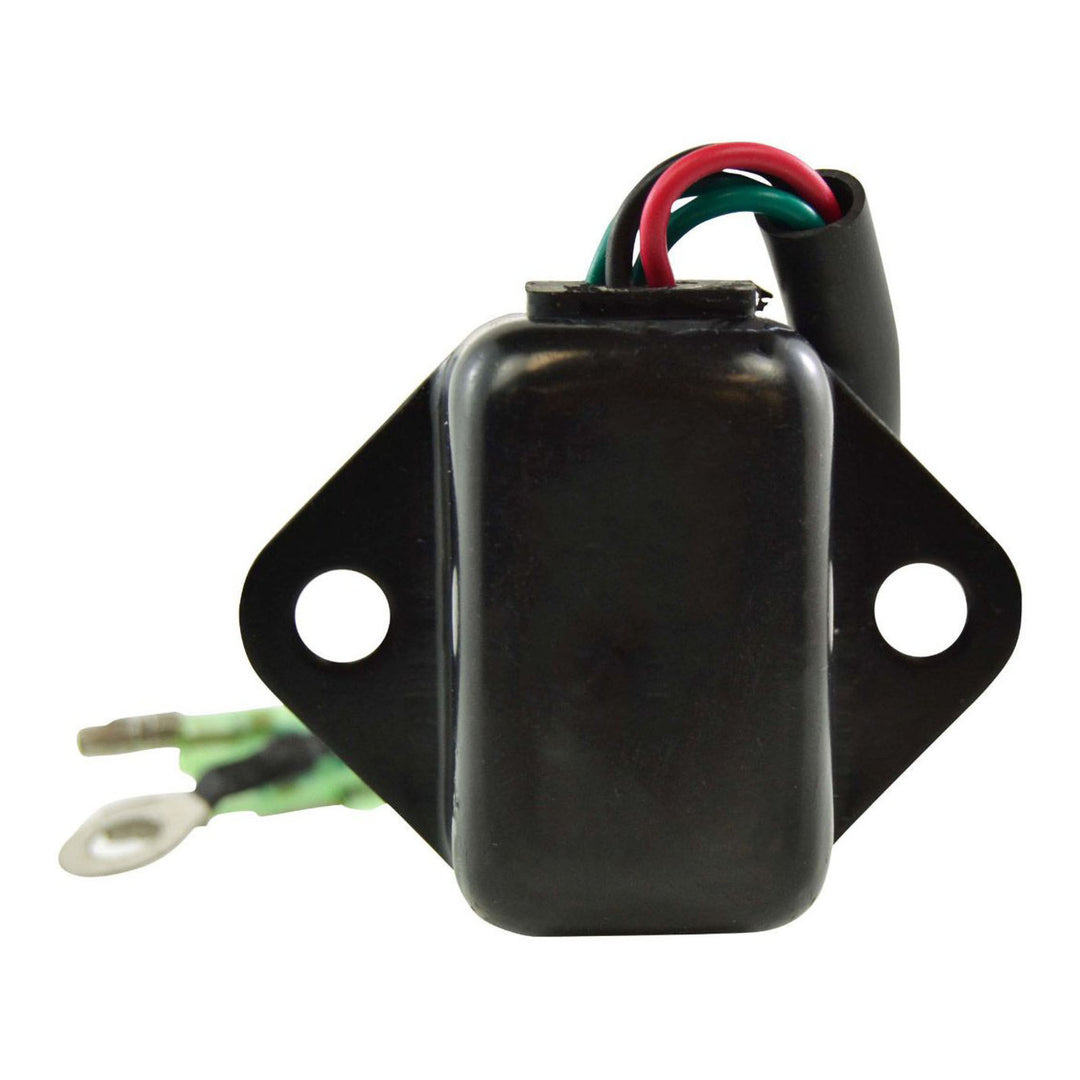

Brand new aftermarket voltage regulator rectifier

  • AC regulator rectifier
  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • The quality exceeds the OEM equipment
  • Higher grade of electric components.
  • All products shipped are tested

Dimensions:

  • Width: 55 mm
  • Length: 45 mm
  • Height: 15 mm
  • Fixation holes centre to centre: 55 mm

Other specifications:

  • Number of pins: 4
  • Number of wires: 4
  • Minimum Charging Voltage: 14.5V +/- 0.5V
  • Maximum Charging Current: 50A/500W
  • Open Circuit Voltage: <15V
  • Operation Temperature: -20° to 85°

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.
