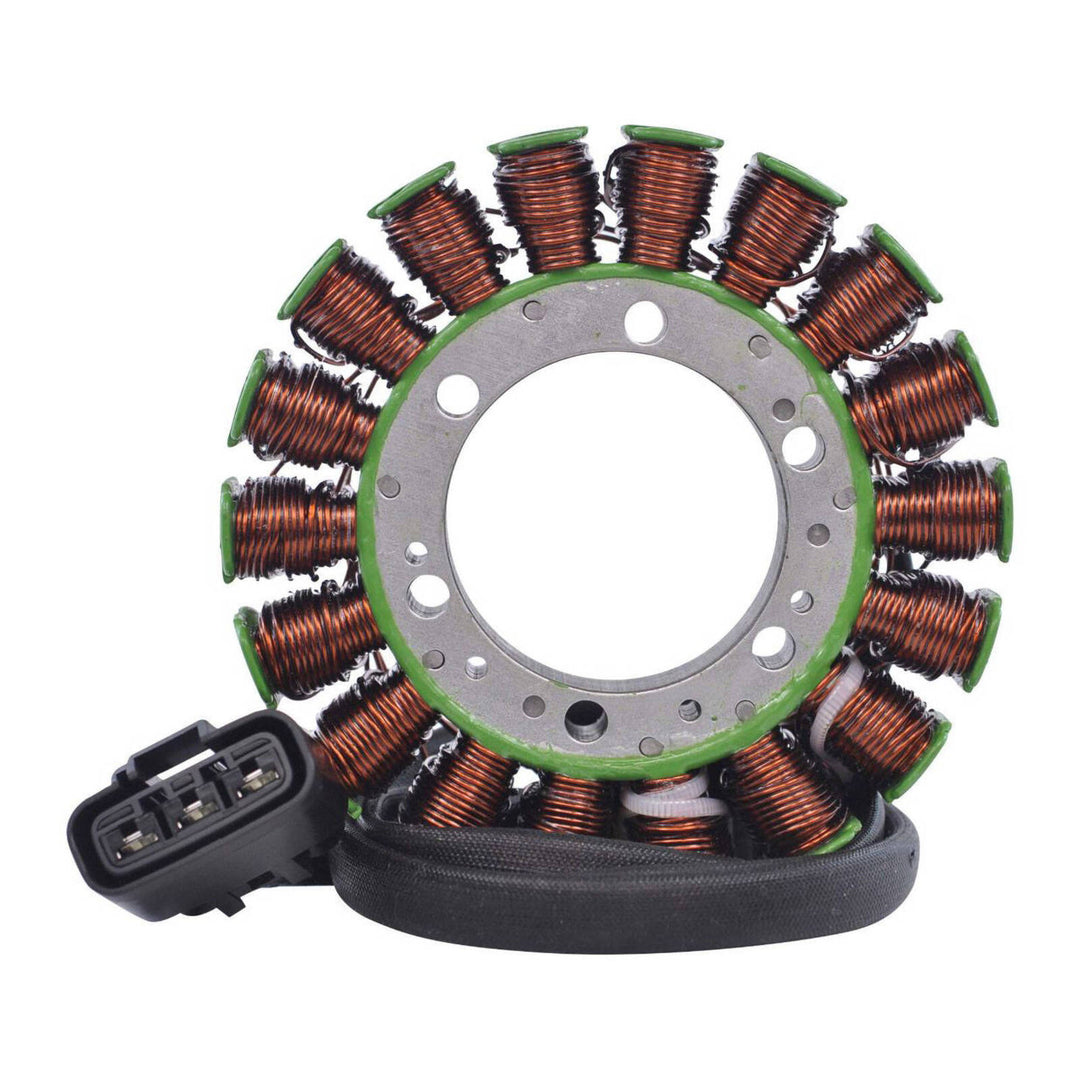

STATOR TRI ROCKET III 2005-2017 (RM01392S)

RMS01392S

Regular price$489.90
/
Tax included. Shipping calculated at checkout.

Title
  • Low stock - 1 item left
  • Backordered, shipping soon

Brand new stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • All product shipped are tested

Wire resistance:

  • Alternator: Black between each Black = 0.04 ohms +/- 20%

Dimension:

  • Interior diameter = 54 mm
  • Exterior diameter = 125 mm
  • Thickness = 24 mm

Other specification:

  • Number of wires = 3
  • Number of terminals = 3

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.
