Lower your suspension without compromising performance.

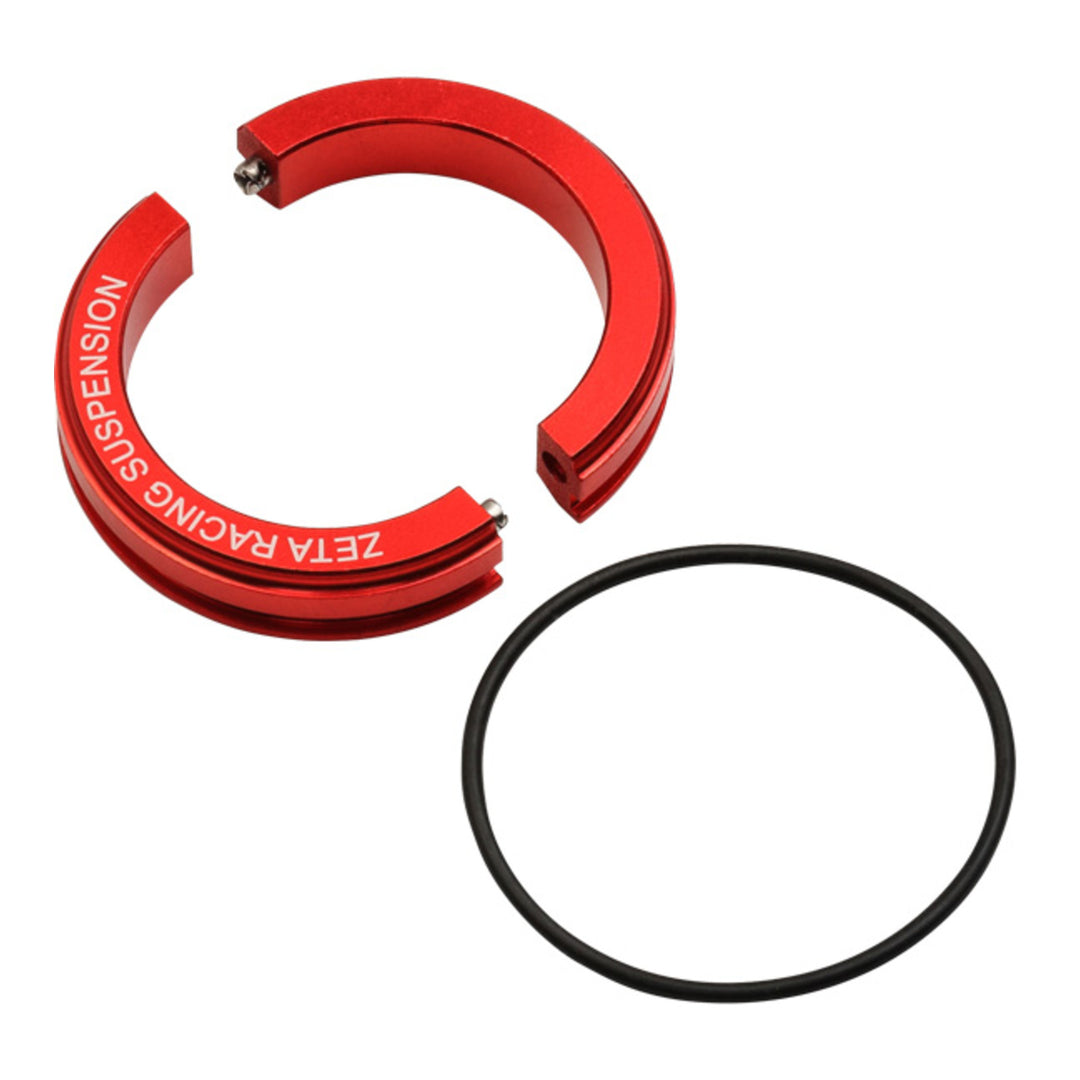

This lowering collar allows you to reduce rear suspension height by 30 mm to 50 mm by pressing and securing the seal head from the outside of the damper—without sacrificing suspension functionality.
By shortening the full extension length without affecting the full bottom position, it helps prevent common issues such as tire-to-fender interference. For even greater lowering, use in combination with a lowering link.
Easy and convenient installation—no need to disassemble the rear shock damper.
Specifications:
- Colour: Silver
- Material: High-strength aluminium alloy
- Weight: 23 g
- Surface treatment: Anodised
Note:
- For certain models (please refer to the compatibility chart), the piston rod extension may be shortened by the collar thickness, resulting in a shorter overall shock length. The spring seat will also be raised by the same amount—please ensure sufficient thread length above the spring seat before installation.
- Required thread space:
- For -40 mm lowering: 14 mm
- For -50 mm lowering: 17 mm
- Oil and gas must be drained before installation.
