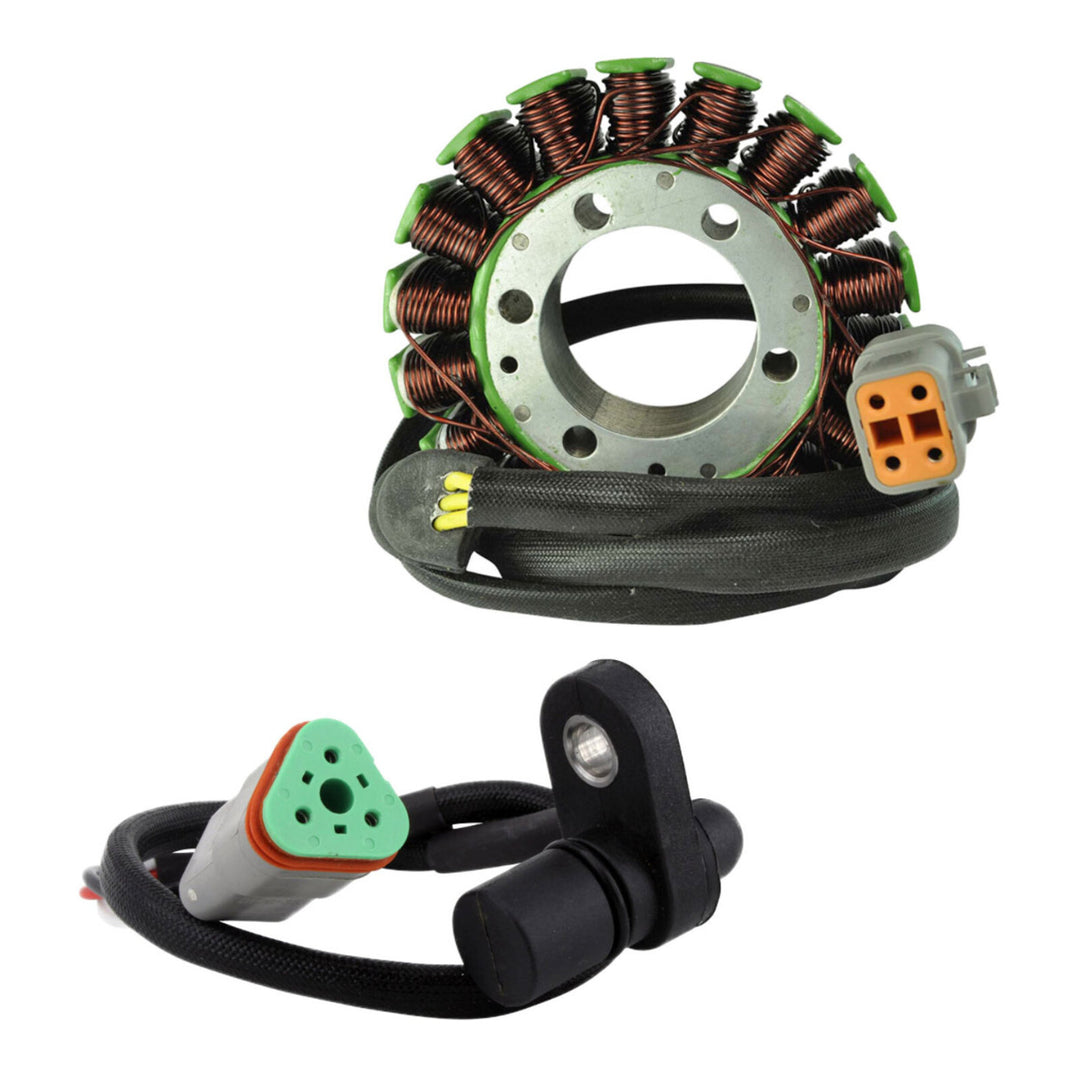

Brand new aftermarket Stator + Speed Sensor Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All product shipped are tested
Brand new aftermarket stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
Stator
Dimensions:
- I nterior diameter: 41mm
- Exterior diameter: 104mm
- Thickness: 30 mm Length of wires stator to grommet: 140mm
- Length of wires grommet to plug: 850mm
Other specifications:
- Number of wires: 3
- Number of plugs: 1
- Number of terminals: 3
Wire to wire resistance:
- Alternator: Yellow between each Yellow = 0.4 ohms +/-20%
Speed Sensor
Dimensions:
- Width: 19mm
- Length: 50mm
- Height: 37mm
- Wires length: 350mm
Other specifications:
- Number of plugs: 1
- Number of terminals: 3
Please Note:
- All electrical components must be fitted by a qualified technician.
- Before fitting electrical components ensure the root cause of the original failure has been addressed.
- The absence of either of points 1 or 2 above, will void any warranty.
