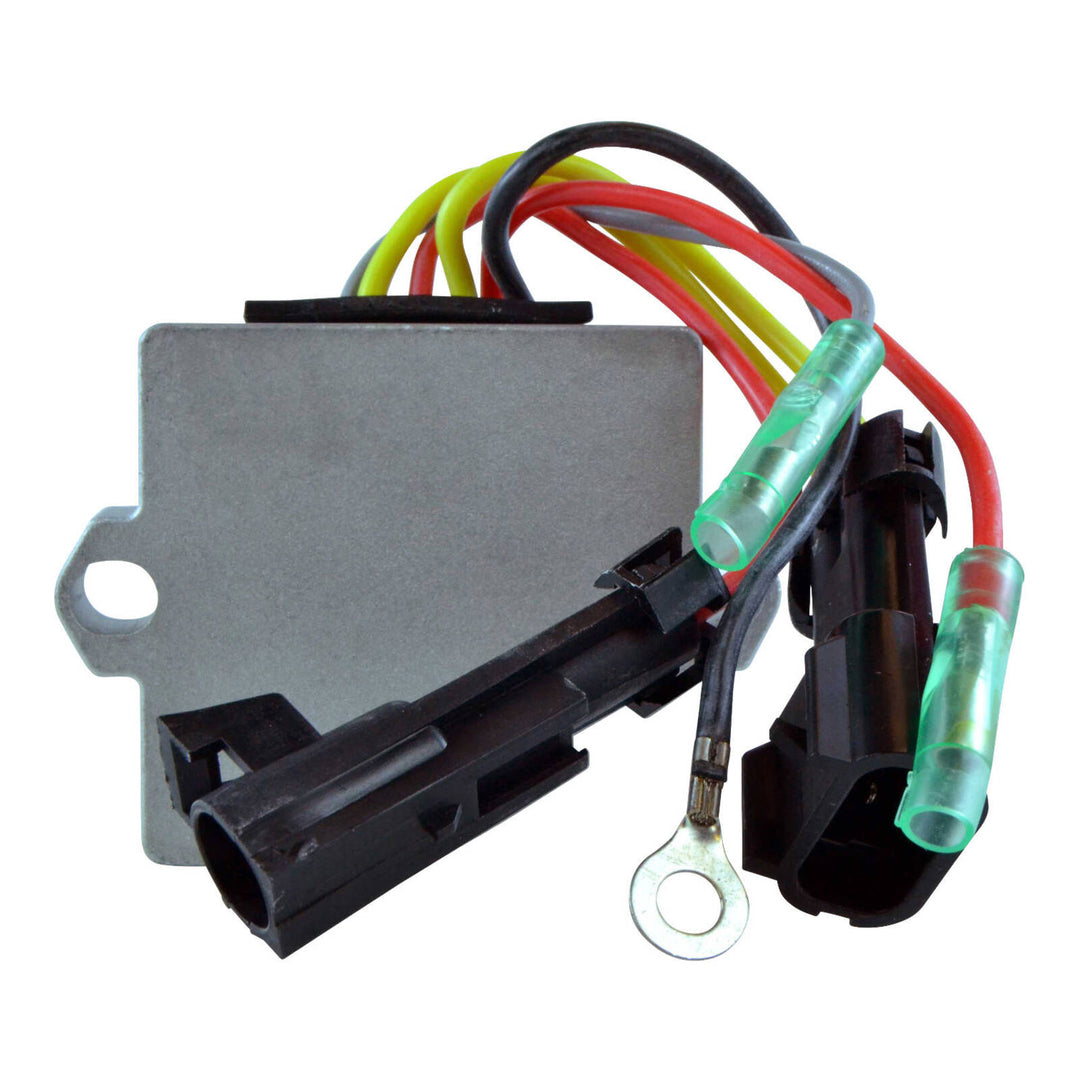

RECTIFIER MERCURY OUTBOARD RFR FITMENTS (RMS020-104385)

RMS020104385

Regular price$379.90
/
Tax included. Shipping calculated at checkout.

Title
  • In stock, ready to ship
  • Backordered, shipping soon

Plug-and-play, aftermarket replacement voltage regulator rectifier from RM Stator. Refer to fitment guide for models.



Dimensions:

  • Width: 65mm
  • Length: 65mm
  • Height: 25mm
  • Stator wires length: 140mm
  • Battery wires length: 160mm



Other specifications:

  • Number of wires: 6
  • Number of plugs: 5
  • Number of pins: 6
  • Minimum Charging Voltage: 14.5V +- 0.5V
  • Maximum Charging Current: 50A/500W
  • Open Circuit Voltage: 15V
  • Operation Temperature: -20° to 85°



Details:

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • No assembly required
  • Higher grade of electric components.
  • The quality exceeds the OEM equipment
  • All products shipped are tested
